AERZENX™
DRIVEFORCE
ENGINEERING SDN BHD 752342-D
HIGH EFFICIENCY
RECIPROCATING PISTON
AIR COMPRESSOR
The current versatile range has a design heritage and proven reliability and efficiency second to none. Piston compressors still provide one of the most energy efficient means of compressing air. Piston compressors are in a class of there own for low pressure applications such as materials handling and high pressure applications such as PET bottle blowing and breathing air cylinder charging systems.
HIGH EFFICIENCY
SINGLE STAGE RECIPROCATING PISTON AIR COMPRESSOR
Model: TN2100S, Capacity: 2 HP / 1.5 KW,
Tank Volume: 100 L, ( Displacement: 330 l/min or
11.7 CFM, Free Air Delivery: 220 l/min or 7.8 CFM)
Working Pressure: 116 PIS / 8 Barg
​
Model: TN5180, Capacity: 5.5 HP / 4 KW,
Tank Volume: 180 L, ( Displacement: 720 l/min or
25.5 CFM, Free Air Delivery: 480 l/min or 16.9 CFM)
Working Pressure: 116 PIS / 8 Barg
​
Model: TN10340, Capacity: 10 HP / 7.5 KW,
Tank Volume: 340 L, ( Displacement: 1460 l/min or
51.6 CFM, Free Air Delivery: 1000 l/min or 35.3 CFM)
Working Pressure: 116 PIS / 8 Barg
​
Model: TN20340, Capacity: 20 HP / 15 KW,
Tank Volume: 340 L, ( Displacement: 2500 l/min or
88.3 CFM, Free Air Delivery: 2000 l/min or 70.6 CFM)
Working Pressure: 116 PIS / 8 Barg
​
Model: TN3150S, Capacity: 3 HP / 2.2 KW,
Tank Volume: 150 L, ( Displacement: 360 l/min or
12.7 CFM, Free Air Delivery: 300 l/min or 10.6 CFM)
Working Pressure: 116 PIS / 8 Barg
​
Model: TN7230, Capacity: 7.5 HP / 5.5 KW,
Tank Volume: 230 L, ( Displacement: 1120 l/min or
39.6 CFM, Free Air Delivery: 670 l/min or 23.7 CFM)
Working Pressure: 116 PIS / 8 Barg
​
Model: TN15340, Capacity: 15 HP / 11 KW,
Tank Volume: 340 L, ( Displacement: 1930 l/min or
68.2 CFM, Free Air Delivery: 1500 l/min or 52.9 CFM)
Working Pressure: 116 PIS / 8 Barg
​
Electric-driven Two-stage Heavy duty air compressor is designed to provide continuous power. Built to last, this durable workhorse is designed for heavy shop or industrial use.
​
It provides the reliability and performance that are ideal for most applications and users including automotive service and body shops, fleet maintenance, machine shops, production and manufacturing lines, wood working shops, dry cleaners, car washes, general maintenance/repair shops and farms.
HIGH EFFICIENCY
TWO-STAGE RECIPROCATING PISTON AIR COMPRESSOR
Model: U50AG18-3, Capacity: 3 HP / 2.2 KW,
Tank Volume: 180 L, ( Displacement: 372 l/min or
12.7 CFM, Free Air Delivery: 272 l/min or 9.7 CFM)
Working Pressure: 175 PIS / 12 Barg
​
Model: U75AG25, Capacity: 7.5 HP / 5.5 KW,
Tank Volume: 250 L, ( Displacement: 862 l/min or
30.4 CFM, Free Air Delivery: 690 l/min or 24.4 CFM)
Working Pressure: 175 PIS / 12 Barg
​
Model: U150AG40, Capacity: 15 HP / 11 KW,
Tank Volume: 400 L, ( Displacement: 1600 l/min or
56.5 CFM, Free Air Delivery: 1280 l/min or 45.2 CFM)
Working Pressure: 175 PIS / 12 Barg
​
Model: U250AG40, Capacity: 25 HP / 18.5 KW,
Tank Volume: 400 L, ( Displacement: 2721 l/min or
96.1 CFM, Free Air Delivery: 2177 l/min or 76.9 CFM)
Working Pressure: 175 PIS / 12 Barg
Model: U50AG18, Capacity: 5.5 HP / 4 KW,
Tank Volume: 180 L, ( Displacement: 624 l/min or
22.0 CFM, Free Air Delivery: 499 l/min or 17.6 CFM)
Working Pressure: 175 PIS / 12 Barg
​
Model: U100AG40, Capacity: 10 HP / 7.5 KW,
Tank Volume: 400 L, ( Displacement: 1150 l/min or
40.6 CFM, Free Air Delivery: 920 l/min or 32.5 CFM)
Working Pressure: 175 PIS / 12 Barg
​
Model: U20AG40, Capacity: 20 HP / 15 KW,
Tank Volume: 400 L, ( Displacement: 2267 l/min or
80.1 CFM, Free Air Delivery: 1814 l/min or 64.0 CFM)
Working Pressure: 175 PIS / 12 Barg
​
Model: U300AG40, Capacity: 30 HP / 22 KW,
Tank Volume: 400 L, ( Displacement: 3628 l/min or
128.1 CFM, Free Air Delivery: 2902 l/min or 102.5 CFM)
Working Pressure: 175 PIS / 12 Barg
​
HIGH EFFICIENCY
MULTI-STAGE RECIPROCATING
PISTON AIR COMPRESSOR
Compressed air is energy that is being used more and more in various fields of industry. This is due to the higher operational safety, flexibility and ease of operation when using compressed air as opposed to other forms of energy.
AERZENX™ series range of high pressure air cooled reciprocating air compressors are proven in power generation, Oil & Gas, Carbon Fibre industries, emergency diesel engine starting, compressed air filling station, burst testing, hydraulic pressurizes chamber and fast growing population in PET blow moulding for food & beverage, pharmaceutical, and others modern industries applications..
HEAVY DUTY HIGH PRESSURE
RECIPROCATING PISTON AIR COMPRESSOR
Model: SBM 3, Capacity: 10 HP / 7.5 KW,
Free Air Delivery: 0.14 m3/min
Working Pressure: 493 PIS / 34 Barg
​
Model: SBM 10, Capacity: 10 HP / 7.5 KW,
Free Air Delivery: 0.60 m3/min
Working Pressure: 493 PIS / 34 Barg
​
Model: SBM 15, Capacity: 15 HP / 11 KW,
Free Air Delivery: 0.60 m3/min
Working Pressure: 885 PIS / 61 Barg
​
Model: SBM 20, Capacity: 20 HP / 15 KW,
Free Air Delivery: 0.50 m3/min
Working Pressure: 261 PIS / 18 Barg
​
Model: SBM20H500, Capacity: 20 HP / 15 KW,
Free Air Delivery: 1.06 m3/min
Working Pressure: 493 PIS / 34 Barg
HIGH EFFICIENCY
PISTON TYPE BOOSTER COMPRESSOR

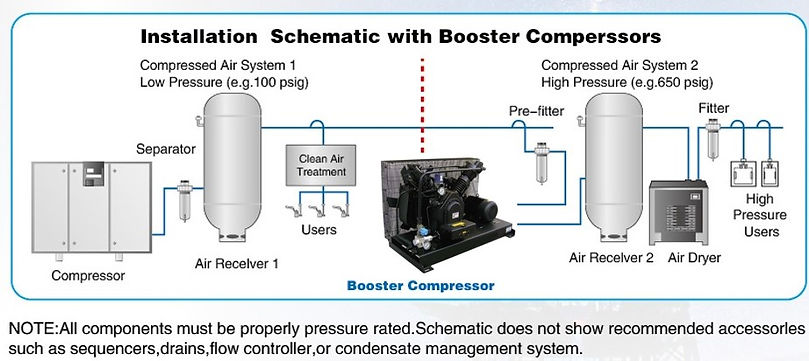

AERZENX™ Booster compressors are on ideal choice for PET bottling applications whereas high pressure compressed air is required. AERZENX™ Booster Compressor series offer an excellence performance, reliability and comprehensive range of high efficiency booster compressors that are able to boost the compressed air from a screw compressor (inlet pressure 7, 8, 10, 13 bar) up to 40 bar.
A wide range of AERZENX™ Booster Compressor series are designed with the latest innovations in reciprocating compressor technology. A booster compressor takes air from a compressed air main and increases the pressure for certain applications such as seal testing in pneumatic and hydraulic devices, certain actuating cylinders, presses, clamping fixtures and PET bottle production.
HIGH EFFICIENCY HIGH PRESSURE
AERZENX™ BOOSTER COMPRESSOR
